Beskrivelse
Sonemikser med 2 soneutganger.

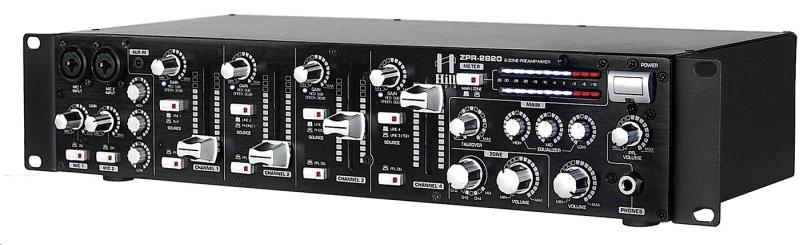

The ZPR2820 2-Zone Rack Mixer is a specific product for venues with combined foreground and background music requirements. While the user interface even allows basic DJ use on occasions when required, other features cater for the requirements of an auxiliary background music zone. In a typical application, party music can be played by a DJ during a weekend inside a pub while soft music is played in the patio area – just to revert to playing the same soft music inside and outside of the venue on a weekday, all with the same sound system and setup. The unique CascadeZone © system makes such scenario changes quick and comfortable. Perfect for any multi-purpose hospitality venue, such as pubs, hotels and restaurants.
4 dual-source stereo inputs (2xLine/Line, 2xPhono/Line) with 2-color signal/peak LED and front-panel gain control
45mm smooth dual-rail input channel faders
1 balanced stereo input (FOH input)
Front panel 3.5mm stereo TRS input
2x Mic inputs with front-side Combo connectors and rear-side 1/4” TRS connectors
12V phantom power for micro- phones by internal jumper
Voice-specific 3-Band EQ plus “on air” switches for mic inputs
Adjustable auto talk-over for automatic music level reduction when microphone is used
Two stereo output zones
CascadeZone ©: Source for 2nd zone output selectable from Input 1-3 or first zone signal
Zone-assignable 2x10LED level meter
Rear-side adjustable maximum level control for each zone

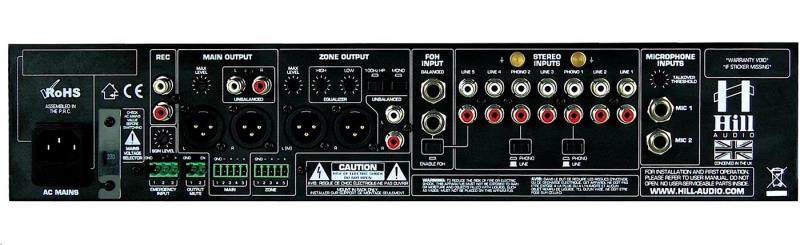

Balanced XLR and Phoenix output connectors plus unbalanced RCA connectors for each zone
3-Band EQ (front panel) for zone 1 and 2-Band EQ (rear panel) for zone 2
100Hz High pass filter and mono switch for zone 2
Emergency input which shuts down master output when emergency signal comes in and plays emergency signal instead
Output mute contact to externally mute the output
PFL section with volume control and front-side 6.3mm stereo jack
Unbalanced record output
Signal/Noise >82dB (Line)
Crosstalk Damping >65dB (Line)
THD <0.05% (Line)
Frequency response 20Hz – 20 kHz
Dimension 483.0×88.0×183.5 mm WxHxD
Weight 2.8 kg
